WDM is always from the computer’s perspective.

Think: “How does Windows see the mixer as a sound device?”

Used when you want the computer to receive audio from the StudioLive.

Examples:

• Recording into Audacity
• Capturing audio in OBS Studio

Used when you want the computer to send audio to the StudioLive.

Examples:

• Playing Spotify, YouTube, or system audio through the mixer
• Routing DAW playback to mixer channels

from the mixer to the computer

1. Set up mix: Set Mix 15 & 16 to be a matrix (i.e. a mix of mixer outputs), then send MASTER to this mix.

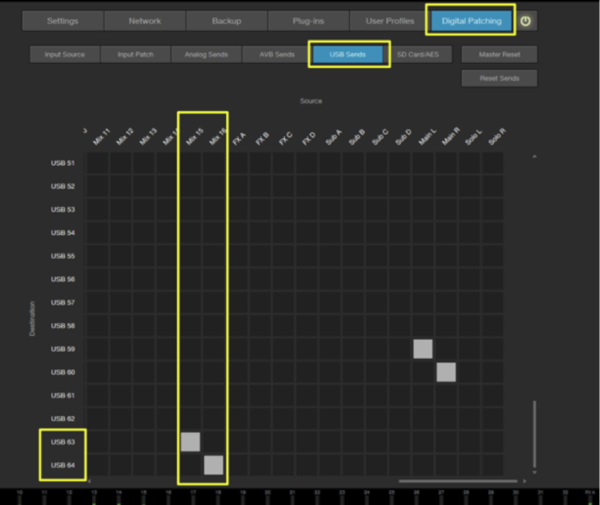

2. Set up Digital Patching: Send Mix 15 & 16 to USB 63 & 64

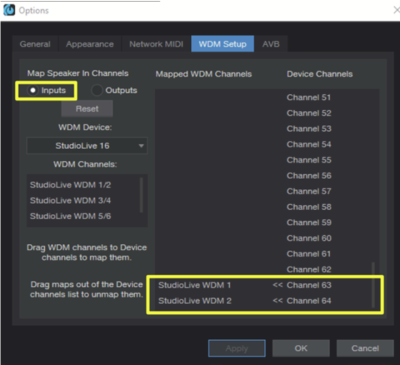

3. WDM Setup: Assign USB 63 & 64 to input slots WDM 1 and WDM 2 of the WDM audio device.

NOTE: OBS Studio may not immediately pick up WDM device changes: Open the “Audio device > Properties dialog” in OBS, this seems to trigger recent audio device changes to apply.

• Other direction

1. check Presonus Hardware Service is running
2. check Device Manager has missing drivers

C:\Program Files\PreSonus\Universal Control\Drivers\StudioLive3\x64\

1. check VPN is stopped: Tailscale / Wireguard / ZeroTier
